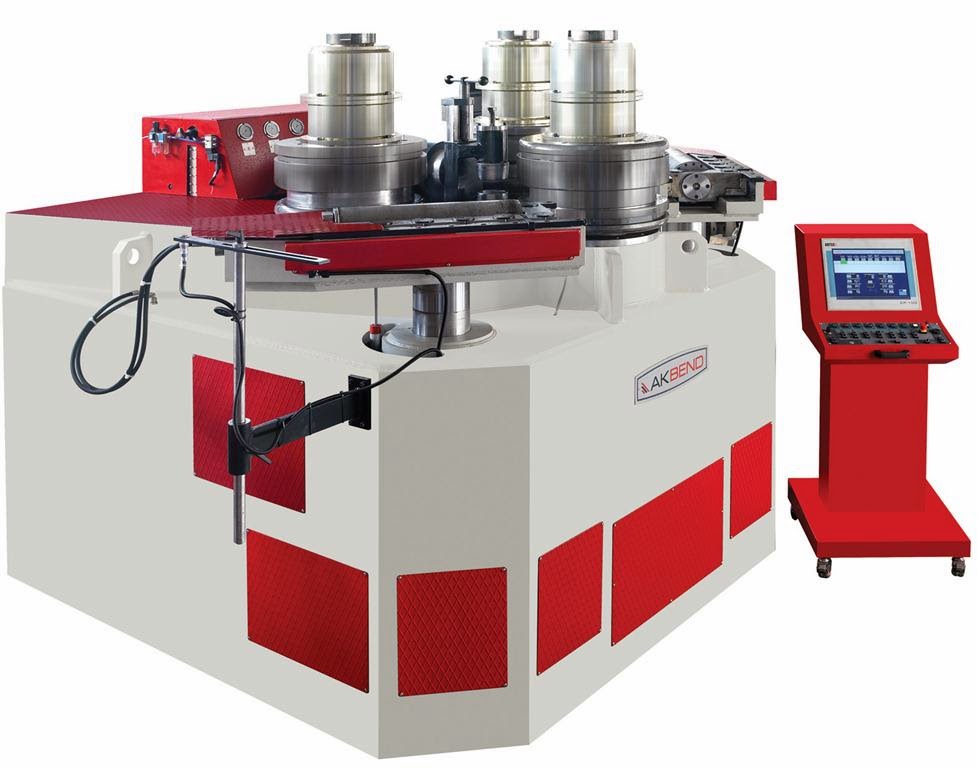

Mesin Bending Roll Profile Siku Hollow H Beam U Channel Strip merk AKYAPAK

TECHNICAL SPECIFICATIONS OF APK 101 PROFILE BENDING MACHINE

Section Modulus	45 -80 cm3
Rolls Ø	315 mm
Shaft Ø	100 mm
Motor Power	11 KW
Bending Speed	5.4 m/min
Length	1435 mm
Height	1680 mm
Width	1220 mm
Weight	2240 kg

· Data based upon steel 240 N/mm² Yield Point.

The shafts are made of NiCrMo alloyed steel. The surface of the rolls are hardened by induction technique.

All types of the machines are produced in our own facilities. AKYAPAK machines are designed by our engineers with C.A.D. technologies. The shafts, rolls and gear system of the machine are produced by CNC machines. After first quality control, the components assemble by professional staff carefully. Then the machine is tested by quality control staff and is painted according to customer request.

STANDARD EQUIPMENT

· Machine is fabricated of steel construction.

· Rolls are driven by hydraulic motor + reducer.

· Hardened rolls.

· Shafts made of special steel, hardened and grounded.

· 1 directional manual adjustable guide rolls.

· Horizontal – vertical working.

· Torque limiting device protecting from overload during bending.

· Lower rolls hydraulic moveable up and down.

· Digital display for lower rolls.

· Separate and moveable control panel.

· Hydraulic and electric installation Bosch, Parker, Siemens, Telemecanique.

· Manuel lubrication.

· 400 Volt / 50 Hz.

· Suitable for “CE”.

Use and adaptation of Akyapak equipment is very simple.

We have in stock all kinds of hydraulic, electric, bearing and gearboxes spare parts in case of machine failures and also easy and quick services for all products are available.

All spare parts in Akyapak equipment are produced by such worldwide known suppliers as Siemens, Bosch, Rexroth, and Parker.

All Akyapak machines are confirmed with CE norms.

Jika anda tertarik membeli atau berencana investasi atau sekedar diskusi tentang mesin, terutama dalam hal pengerjaan plat logam (sheet metal fabrication), seperti mesin bending (press brake), potong plat (swing beam shearing), gunting plat (guillotine shearing), potong sudut (notching), roll plat (roll bending machine), pon (punching or turret punching), press (stamping), deep drawing (hydraulic press), plasma cutting (potong plasma), laser, water jet, marking, engraving, dll. anda bisa menghubungi saya di nomor HP 081345026234 / 085822116234 atau email kurniawan.saldy@gmail.com, saya dengan senang hati berbagi pengetahuan tentang hal tersebut, terima kasih.

Mesin CNC Turret Punch / Pon merk JFY

“JFY” CNC Turret Punch Press type: VT-300 – 1250 x 2500

Technical Specifications:
Specifications Unit VT-300
Press capacity Ton 30
Max. Table size mm 1250 x 2500
Max. material weight Kg 150
Max. sheet thickness mm 6.35
Turret capacity pcs 32 tools (2 indexing)
Axis Travel X x Y mm 1250 x 1250
Punching accuracy mm ±0.10
Strokes per minute hpm 600
Hits per 25mm hpm 350
Max. feeding speed m/min 85
Turret rotation speed rpm 30
Control axis pc 4
CNC system FANUC
Max.hole diameter mm Ø 88.9
Air pressure mpa 0.6
Air flow m³/min 0.4
Outline dimensions mm 5270 x 2500 x 2466
Total weight Ton 21
Type Closed-type

Including Equipments:
• H+L Hydraulic System
• Fanuc CNC System 10.4\” Graphic Screen
• Fanuc Electric and Drive Module
• Fanuc Servo Motor
• 32 Sets Standard Tools （Made in Wilson USA )
• 2 Index Station
• Processing Plate : 1250 x 1250 mm (Without Repositioning)
• THK or Rexroth Linear Guideway
• THK or Rexroth Ball Screws
• NSK OR INA OR Nachi Ball Screw Bearing
• SMC or Festo Pneumatic component
• Schneider Main Electric Component
• Ball and Brush Mixed Worktable
• Typed Body, Floating Clamp
• 380 Volt/3 Phase/50 HZ Voltage
• Holland and Landon Paint
• Metalex CAD/CAM Software for Nesting

Jika anda tertarik membeli atau berencana investasi atau sekedar diskusi tentang mesin, terutama dalam hal pengerjaan plat logam (sheet metal fabrication), seperti mesin bending (press brake), potong plat (swing beam shearing), gunting plat (guillotine shearing), potong sudut (notching), roll plat (roll bending machine), pon (punching or turret punching), press (stamping), deep drawing (hydraulic press), plasma cutting (potong plasma), laser, water jet, marking, engraving, dll. anda bisa menghubungi saya di nomor HP 081345026234 / 085822116234 atau email kurniawan.saldy@gmail.com atau Saldy@pt-tmu.co.id, saya dengan senang hati berbagi pengetahuan tentang hal tersebut, terima kasih.

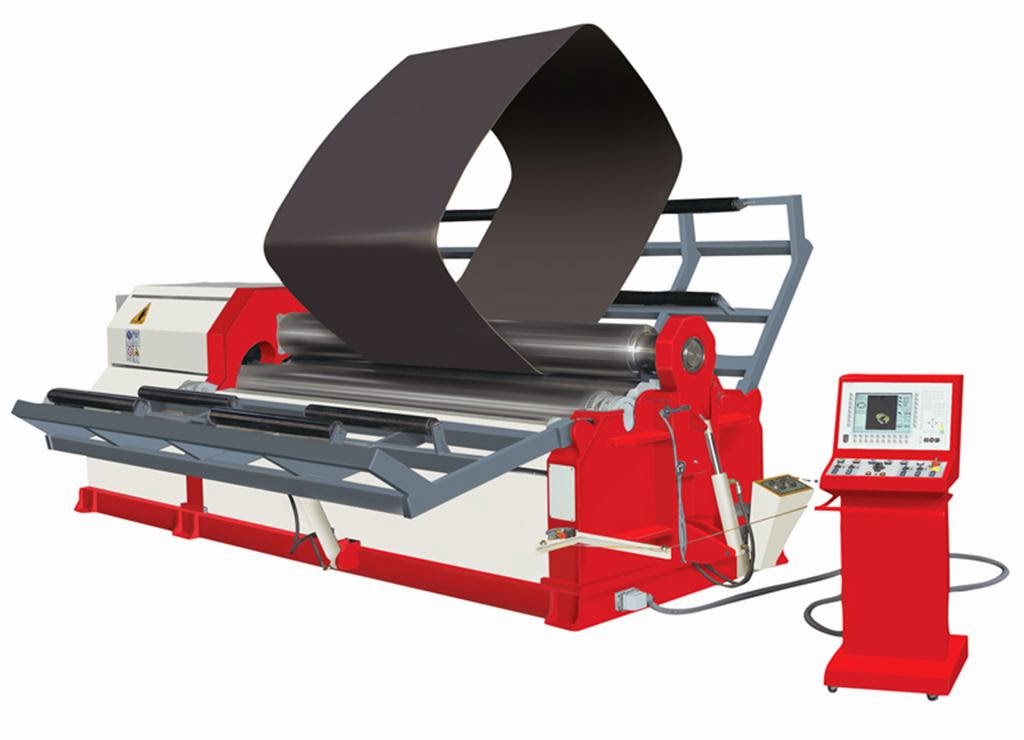

Mesin roll gulung plat hidrolik 4 roll merk AKBEND

(AKBEND Four Roll Plate Bending Machine)

TECHNICAL SPECIFICATIONS OF AHS 30/20–25 mm HYDRAULIC 4 ROLLER PLATE BENDING MACHINE

Working Length	3.100 mm
Maximum Thickness (Ø min = Top roll Ø x 3 )	25 mm
Pre-bending (Ø min = Top roll Ø x 3 )	20 mm
Top Roll Ø	390 mm
Bottom Roll Ø	360 mm
Side Rolls Ø	300 mm
Motor Power	18.5 KW
Length	5.740 mm
Height	1.983 mm
Width	2.100 mm
Weight	17.540 kg

· Data based upon steel 240 N/mm² YIELD POINT.

PLATE BENDING ROLLS’ CAPACITIES BECOME HALF OF THEIR USUAL PREBENDING CAPACITIES DURING THE REALIZATION OF CONE BENDING PROCESSES.

THE THICKNESSES AND THE LENGTHS ARE REDUCED TO MAXIMUM PREBENDING CAPACITIES’ HALFS.

A REGULAR PREBENDING PROCESS TO ROLL A PLATE INTO A CYLINDRICAL SHAPE REQUIRES PARALLELISM BETWEEN SIDE ROLLS AND TOP ROLL. THAT IS OBTAINED BY EQUAL BEARING LOADINGS AT THE END OF EACH SIDE ROLLS.

THE ABOVE MENTIONED LOADINGS CHANGE ACCORDING TO TILTING UP THE SIDE ROLLS TO OBTAIN CONES. THEN THE BEARINGS AT DROP END TAKES APPROXIMATELY 80% TO 100% OF THE WHOLE LOAD THAT APPEARS.

*** SINCE THE SWING GUIDES ARE DESIGNED ACCORDING TO THE LEVEL-ARM PRINCIPLE, THE MACHINE PROVIDES MORE POWER TO BEND THE MATERIAL AND BY THE HELP OF THIS POWER, PREBENDING GETS PERFECT AND THE STRAIGHT AREA IS DECREASED TO MINIMUM LEVEL.

STANDARD EQUIPMENT

· INDUCTION HARDENED ROLLS

· DIGITAL DISPLAY

· CONE BENDING DEVICE

· TWO SPEED CONTROL

· Machine body is steel construction ST-52.

· All rollers mounted in bearing.

· Separate control panel

· Drop-end controlled from control panel in order to release easily bended metal sheet

· Movement and parallelism adjustment of the rollers controlled from the control panel. (Ergonomic designed control panel which allows to control all the functions of the machine is independent from the machine.)

· Central rolls are driven with hydraulic motor and reducer.

· Electrical and hydraulic protection against overloads.

· Hydraulic installation world wide known brands.

· Electrical installation world wide known brands.

· Suitable to “CE”.

OPTIONAL EQUIPMENT

Variable Speed of Rotation
Side supporters for big sheet metal diameters (For bending big diameters, side supports must be used in order to prevent from the material’s deformation by its own weight.)
Central supporters for big sheet metal diameters (For bending big diameters, Central support must be used in order to prevent from the material’s deformation by its own weight.)
Material feed table (2m x 2m )
Oil Cooler System
Electro-Hydraulic Calibration
AK300CS NC Control
AK 400 CS CNC Control
